Ti-Series Amplifiers
Networkable Amplifiers for Installation
Ti Series amplifiers provide remote monitoring and control for a variety of fixed installation applications. Sound quality is maintained over a very wide range of load and temperature conditions. Low distortion optical limiters with automatic response times, ensure speaker protection whilst maintaining transparent sonic performance.
All models include remote level, mute, standby and load/status monitoring. GPIO ports on each amplifier allow for “stand alone” reporting of fault conditions, or simple remote control of local level, along with emergency muting for public safety-critical applications. Additionally, the front panel gain controls can be disabled for maximum security.
In conjunction with one of the Ti Breakout devices, a system can take care of itself, with the Breakout checking all the connected amplifiers and reporting any problems through the network and/or via a local warning mechanism. When online, running with iCore, the software package for managing all the components, an “identify” facility allows amplifiers and other Ti Series components to be easily located and addressed on the network.
All MC² Audio products are covered by a 5 year warranty.
Specifications
Number of channels |
2 |
Output Power: (per channel) |
8 ohms |
215W |
4 ohms |
375W |
2 ohms |
N/A |
Output Power: (bridged) |
8 ohms |
750W |
4 ohms |
N/A |
THD%: (@1dB below max output) |
@ 1kHz |
< 0.008% |
20Hz to 20kHz |
< 0.03% |
Gain / Sensitivity: |
Gain |
32dB |
Sensitivity (for max power) |
+2.0dBu
(1.0V) |
Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
Power Consumption: (< 5W in standby) |
Nominal @ 240v into 4 ohms |
1.0A |
Nominal @ 120v into 4 ohms |
2.0A |
Dimensions: (2U) (mm) |
Amplifier |
88(h) x 482(w) x 428(d) |
Single Box (UK shipping) |
230 x 580 x 560 |
Double Box (outside UK) |
250 x 610 x 600 |
Weight: |
Amplifier |
13.2kg |
Boxed (shipping weight) |
15.0kg |
Images

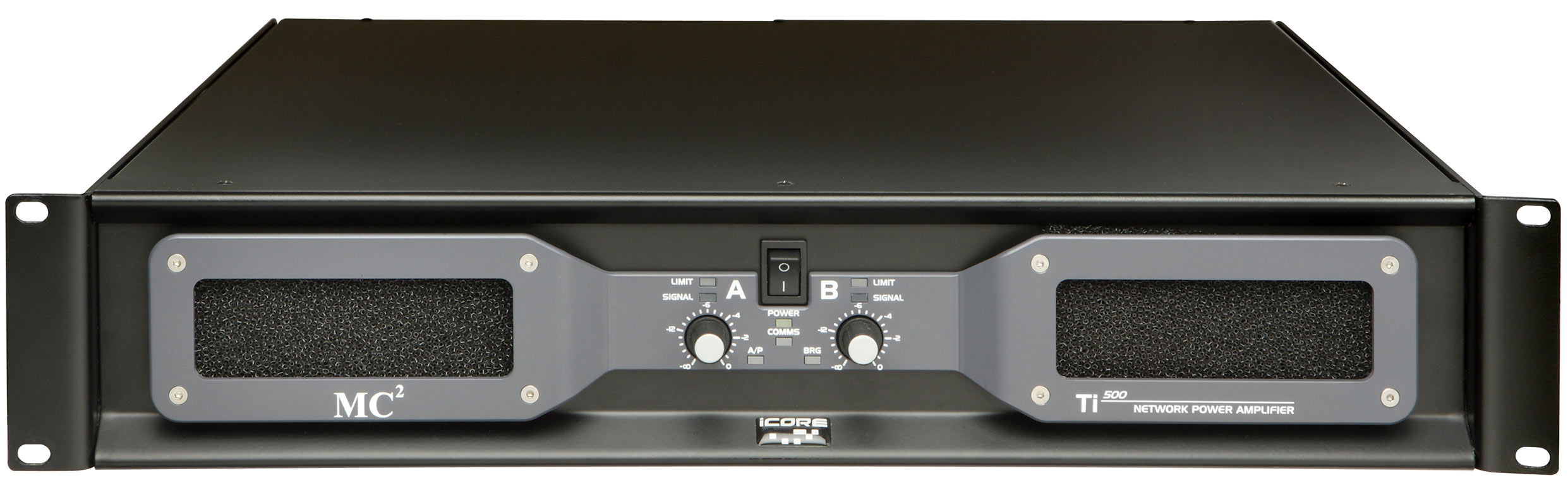

Front Panel (Click to enlarge)

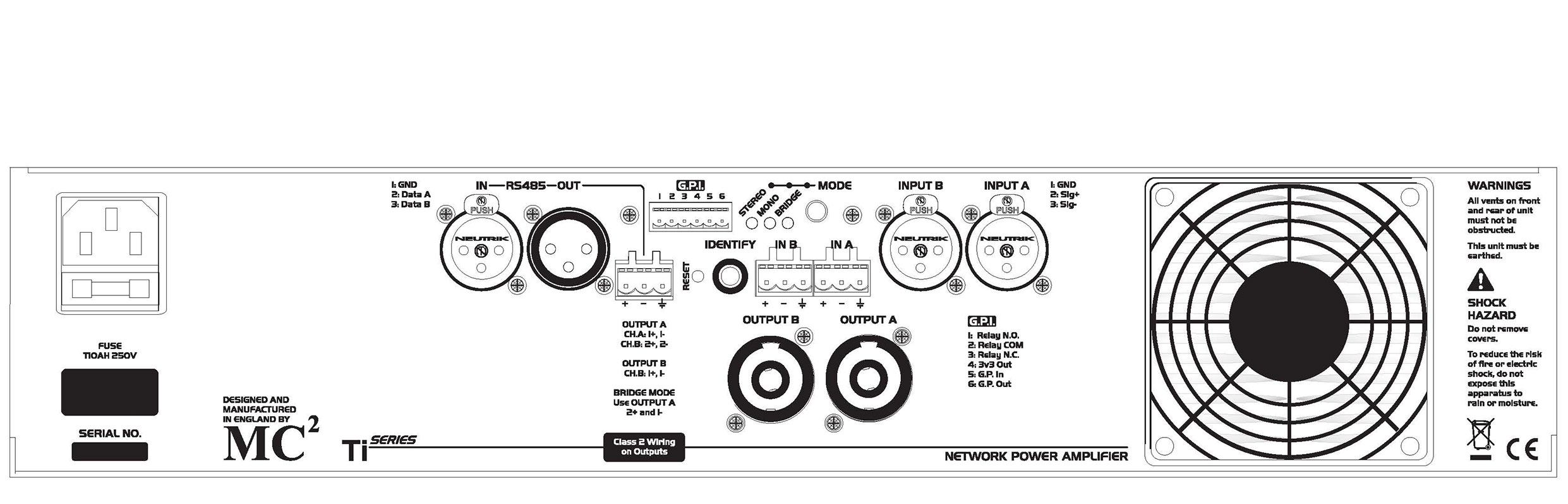

Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
Specifications
Number of channels |
2 |
Output Power: (per channel)* |
8 ohms |
450W |
4 ohms |
750W |
2 ohms |
1150W |
Output Power: (bridged) |
8 ohms |
1500W |
4 ohms |
2300W |
THD%: (@1dB below max output) |
@ 1kHz |
< 0.008% |
20Hz to 20kHz |
< 0.03% |
Gain / Sensitivity: |
Gain |
32dB |
Sensitivity (for max power) |
3.5dBu
(1.20V) |
Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
Power Consumption: (< 5W in standby) |
Nominal @ 240v into 4 ohms |
1.9A |
Nominal @ 120v into 4 ohms |
3.8A |
Dimensions: (2U) (mm) |
Amplifier |
88(h) x 482(w) x 428(d) |
Single Box (UK shipping) |
230 x 580 x 560 |
Double Box (outside UK) |
250 x 610 x 600 |
Weight: |
Amplifier |
14.2kg |
Boxed (shipping weight) |
16.0kg |
*for 100V line drive specifications, please read this document
Images

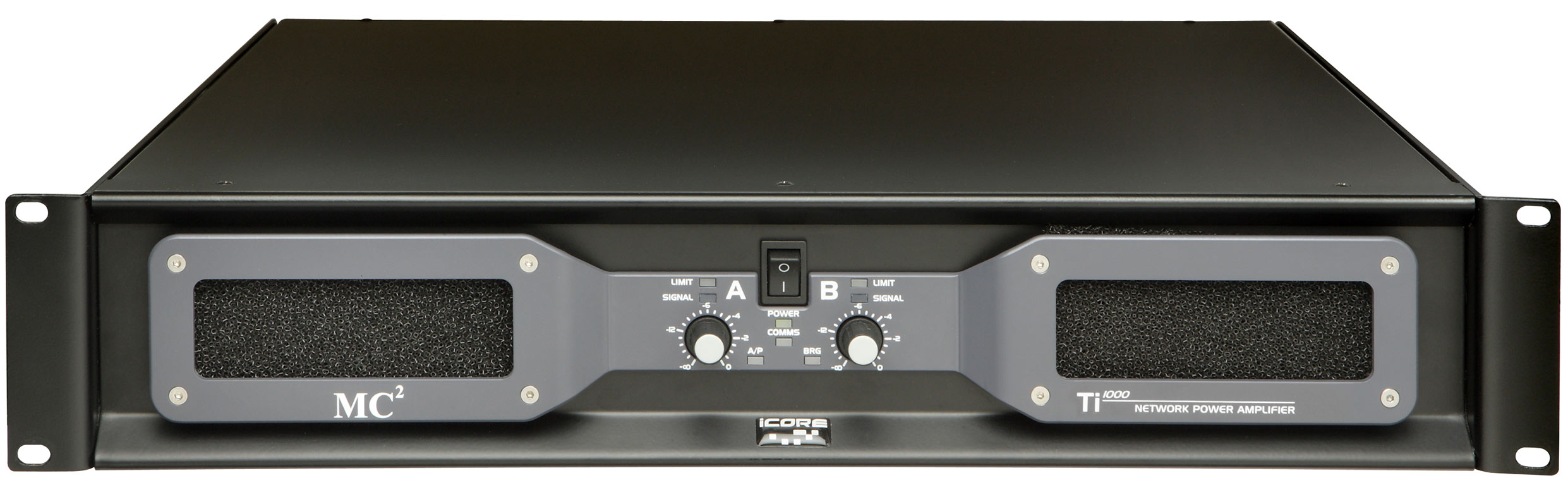

Front Panel (Click to enlarge)
Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
Specifications
Number of channels |
2 |
Output Power: (per channel)* |
8 ohms |
575W |
4 ohms |
1025W |
2 ohms |
1750W |
Output Power: (bridged) |
8 ohms |
2050W |
4 ohms |
3500W |
THD%: (@1dB below max output) |
@ 1kHz |
< 0.008% |
20Hz to 20kHz |
< 0.03% |
Gain / Sensitivity: |
Gain |
32dB |
Sensitivity (for max power) |
+5.5dBu
(1.20V) |
Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
Power Consumption: (< 5W in standby) |
Nominal @ 240v into 4 ohms |
2.6A |
Nominal @ 120v into 4 ohms |
5.2A |
Dimensions: (2U) (mm) |
Amplifier |
88(h) x 482(w) x 428(d) |
Single Box (UK shipping) |
230 x 580 x 560 |
Double Box (outside UK) |
250 x 610 x 600 |
Weight: |
Amplifier |
19.7kg |
Boxed (shipping weight) |
21.2kg |
*for 100V line drive specifications, please read this document
Images
Front Panel (Click to enlarge)

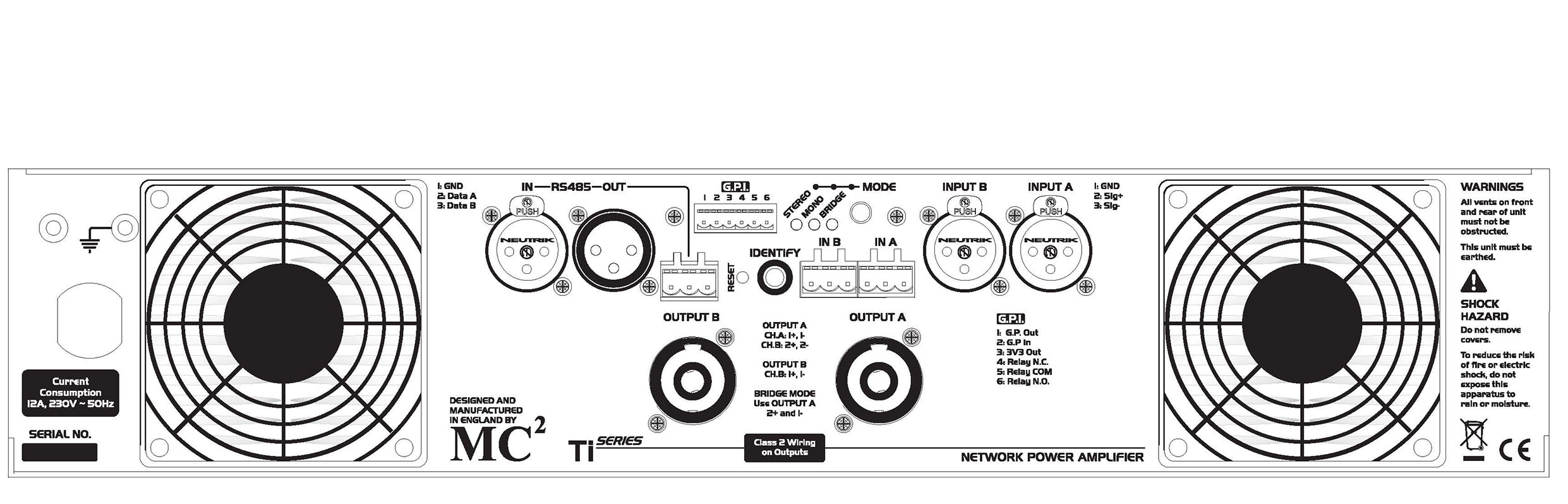

Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
Specifications
Number of channels |
2 |
Output Power: (per channel)* |
8 ohms |
625W |
4 ohms |
1150W |
2 ohms |
2100W |
Output Power: (bridged) |
8 ohms |
2300W |
4 ohms |
4200W |
THD%: (@1dB below max output) |
@ 1kHz |
< 0.008% |
20Hz to 20kHz |
< 0.03% |
Gain / Sensitivity: |
Gain |
32/36dB |
Sensitivity (for max power) |
+7.5/3.5dBu
(1.80/1.20V) |
Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
Power Consumption: (< 5W in standby) |
Nominal @ 240v into 4 ohms |
2.8A |
Nominal @ 120v into 4 ohms |
5.6A |
Dimensions: (2U) (mm) |
Amplifier |
88(h) x 482(w) x 428(d) |
Single Box (UK shipping) |
230 x 580 x 560 |
Double Box (outside UK) |
250 x 610 x 600 |
Weight: |
Amplifier |
20.5kg |
Boxed (shipping weight) |
22.3kg |
*for 100V line drive specifications, please read this document
Images
Front Panel (Click to enlarge)
Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
Specifications
Number of channels |
2 |
Output Power: (per channel)* |
8 ohms |
1000W |
4 ohms |
1850W |
2 ohms |
N/A |
Output Power: (bridged) |
8 ohms |
3700W |
4 ohms |
N/A |
THD%: (@1dB below max output) |
@ 1kHz |
< 0.008% |
20Hz to 20kHz |
< 0.05% |
Gain / Sensitivity: |
Gain |
32/36dB |
Sensitivity (for max power) |
+9/5dBu
(2.20/1.40V) |
Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
Power Consumption: (< 5W in standby) |
Nominal @ 240v into 4 ohms |
4.2A |
Nominal @ 120v into 4 ohms |
8.4A |
Dimensions: (2U) (mm) |
Amplifier |
88(h) x 482(w) x 428(d) |
Single Box (UK shipping) |
230 x 580 x 560 |
Double Box (outside UK) |
250 x 610 x 600 |
Weight: |
Amplifier |
22.5kg |
Boxed (shipping weight) |
24.4kg |
*for 100V line drive specifications, please read this document
Images
Front Panel (Click to enlarge)
Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
Specifications
Number of channels |
4 |
Output Power: (per channel)*C&D only |
8 ohms |
160W |
4 ohms |
300W |
2 ohms |
475W* |
Output Power: (bridged)*C&D only |
8 ohms |
600W |
4 ohms |
950W* |
THD%: (@1dB below max output) |
@ 1kHz |
< 0.008% |
20Hz to 20kHz |
< 0.03% |
Gain / Sensitivity: |
Gain |
32dB |
Sensitivity (for max power) |
+2.0dBu
(1.0V) |
Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
Power Consumption: |
Nominal @ 240v into 4 ohms |
1.5A |
Nominal @ 120v into 4 ohms |
3.0A |
Dimensions: (2U) (mm) |
Amplifier |
88(h) x 482(w) x 428(d) |
Single Box (UK shipping) |
230 x 580 x 560 |
Double Box (outside UK) |
250 x 610 x 600 |
Weight: |
Amplifier |
15.0kg |
Boxed (shipping weight) |
17.0kg |
Images

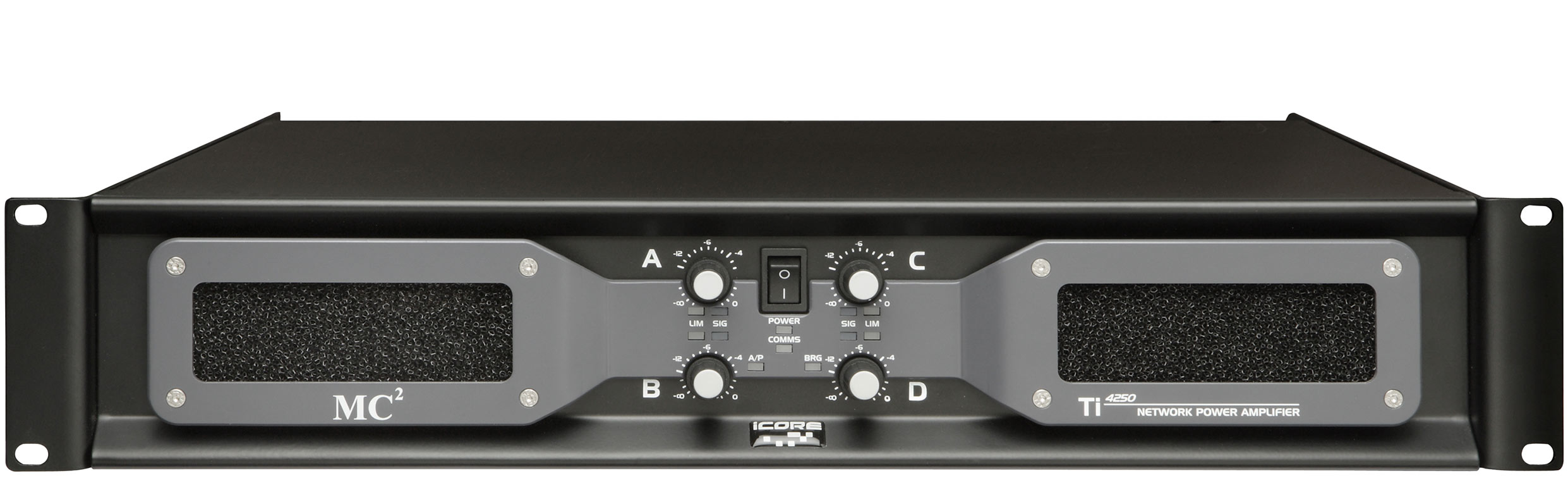

Front Panel (Click to enlarge)

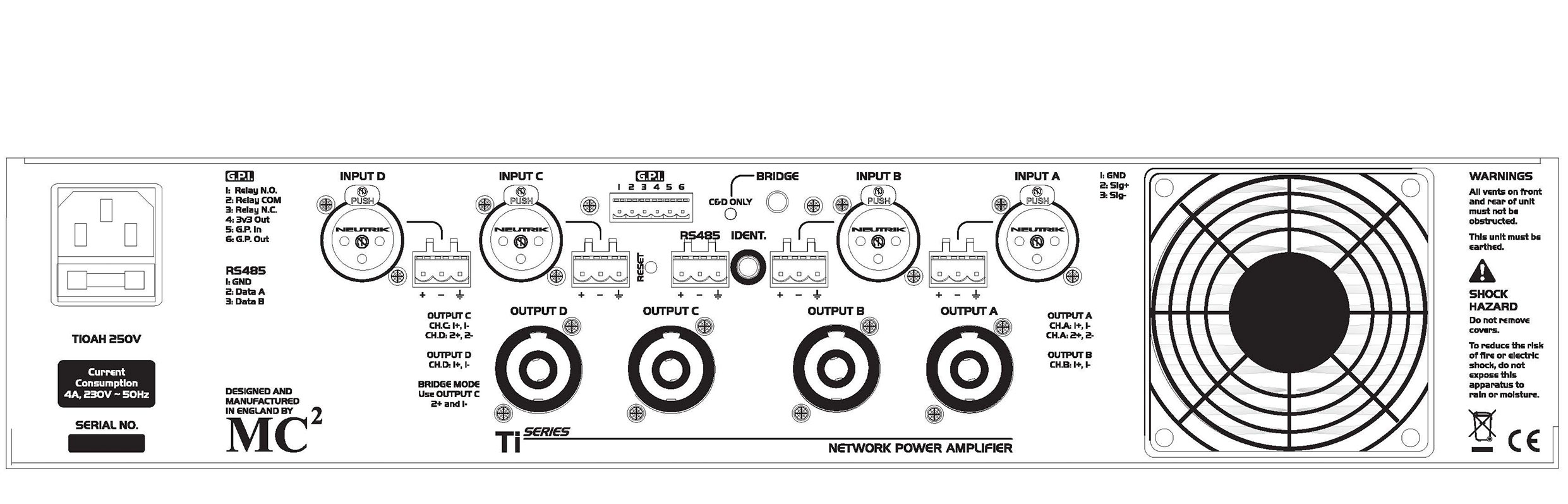

Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
